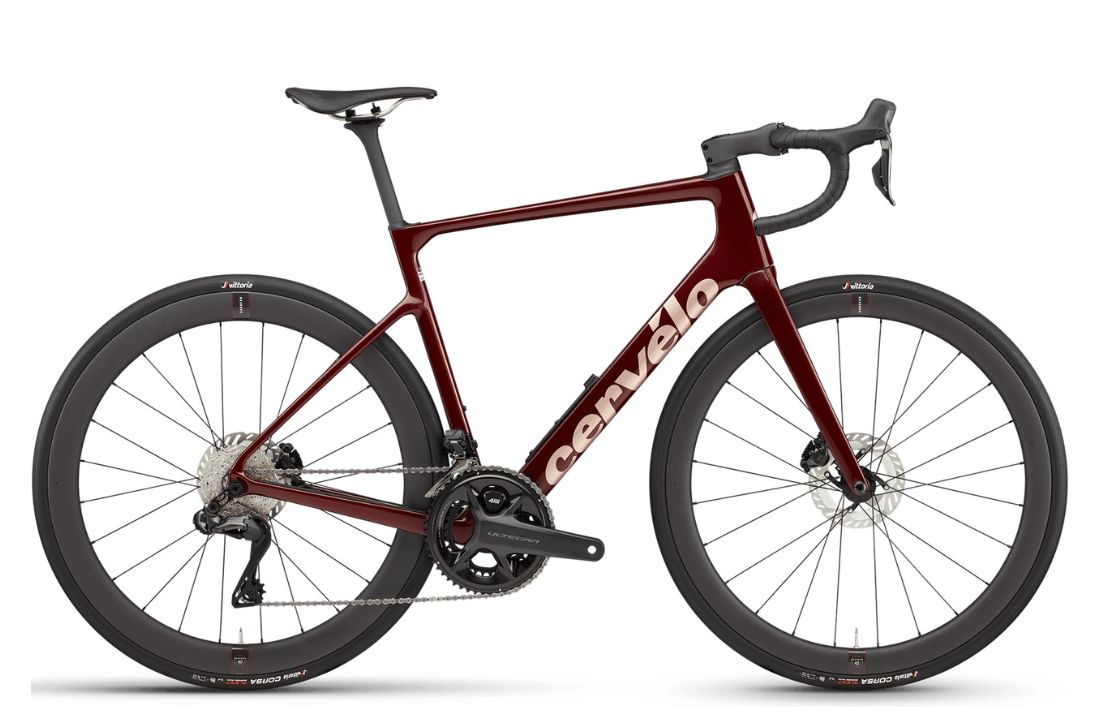

Cervelo Caledonia 5 8170 Carmine

The Cervélo Caledonia-5 Ultegra DI2 Carmine 2025 is a premium road bike designed for passionate cyclists seeking performance and comfort. Its carbon frame and Shimano Ultegra DI2 12-speed electronic system ensure a smooth and precise transmission on all roads. This model features high-performance wheels and is compatible with tires up to 36 mm, offering great versatility for long or technical rides. With its practical accessories and optimized design, it is ready to take on any challenge.

Internal storage

New on the Caledonia-5 2025, the frame's integrated storage allows you to carry the essentials: an inner tube, a small multi-tool, and a CO2 cartridge. Easily accessible, even with gloves, simply operate the locking lever to open it.

Aerodynamics

Every Cervélo bike is designed to provide an aerodynamic advantage, and the Caledonia-5 is no exception. With fully internal cable routing and an optimized frame shape, it reduces wind resistance to maximize your speed and endurance on long rides.

Comfort and adjustments

The 2025 Caledonia-5 is designed to tackle the most demanding roads with optimal comfort. Inspired by the Áspero model, the lowered seatstays improve the vertical flexibility of the rear triangle, while a stiffer down tube preserves the frame's responsiveness. In addition, the new upper headset cover allows for position adjustment without complete disassembly.

Reserve 42|49 Wheels

The versions equipped with the SRAM Red, SRAM Force, Shimano Dura-Ace and Shimano Ultegra Di2 groupsets are equipped with Reserve 42|49 wheels. Developed with Turbulent Aero technology, they adapt to all types of terrain while maintaining excellent aerodynamic efficiency, perfectly in line with the Caledonia-5 program.

Sizes

Available in 48, 51, 54, 56, 58 and 61 cm

Fork

Cervélo full carbon fork, tapered steerer ( Tapered Caledonia-5 Fork )

Headset

FSA IS2 Headset, 1-1/4" - 1-1/2"

Gallows

Cervélo ST32 alloy stem

Handlebar

Cervélo HB13 carbon handlebar, 31.8 mm diameter

Seat post

Cervélo SP24 carbon seatpost

Saddle

Selle Italia NOVUS BOOST EVO SuperFlow saddle with titanium rails

Controllers

Shimano Ultegra, R8170, 12-speed (DI2 electronic system)

Brakes

Shimano Ultegra hydraulic disc brakes

Discs

Shimano CL800 discs, Centerlock mount

Front derailleur

Shimano Ultegra, R8150, 12 speed

Rear derailleur

Shimano Ultegra, R8150, 12 speed

Cassette

Shimano Ultegra, 11-34 teeth, 12 speed

Chain

Shimano M8100, 12 speeds

Crankset

Shimano Ultegra R8100, 52/36T, 12-speed, with 4iiii Precision Pro GEN3+ dual-sided power meter

Bottom bracket

FSA , BBright threaded, 24mm axle

Wheels

Rear wheel: Reserve 49, 24.5 mm internal width, Zipp 176 hub, 12x142 mm axle, HG freehub, 24 spokes, Centerlock mount, tubeless compatible

Front wheel: Reserve 42, 25.5 mm internal width, Zipp 76 hub, 24 spokes, Centerlock mount, tubeless compatible

Through axles

Cervélo Aero thru axles, 12x100 mm (front) / 12x142 mm (rear)

Tires

Vittoria Corsa N.EXT TLR G2.0, 700x30 mm

Maximum tire width

Compatible with tires up to 36 mm

Accessories included

Cervélo front mount for computer and accessories, removable mudguard mounts
