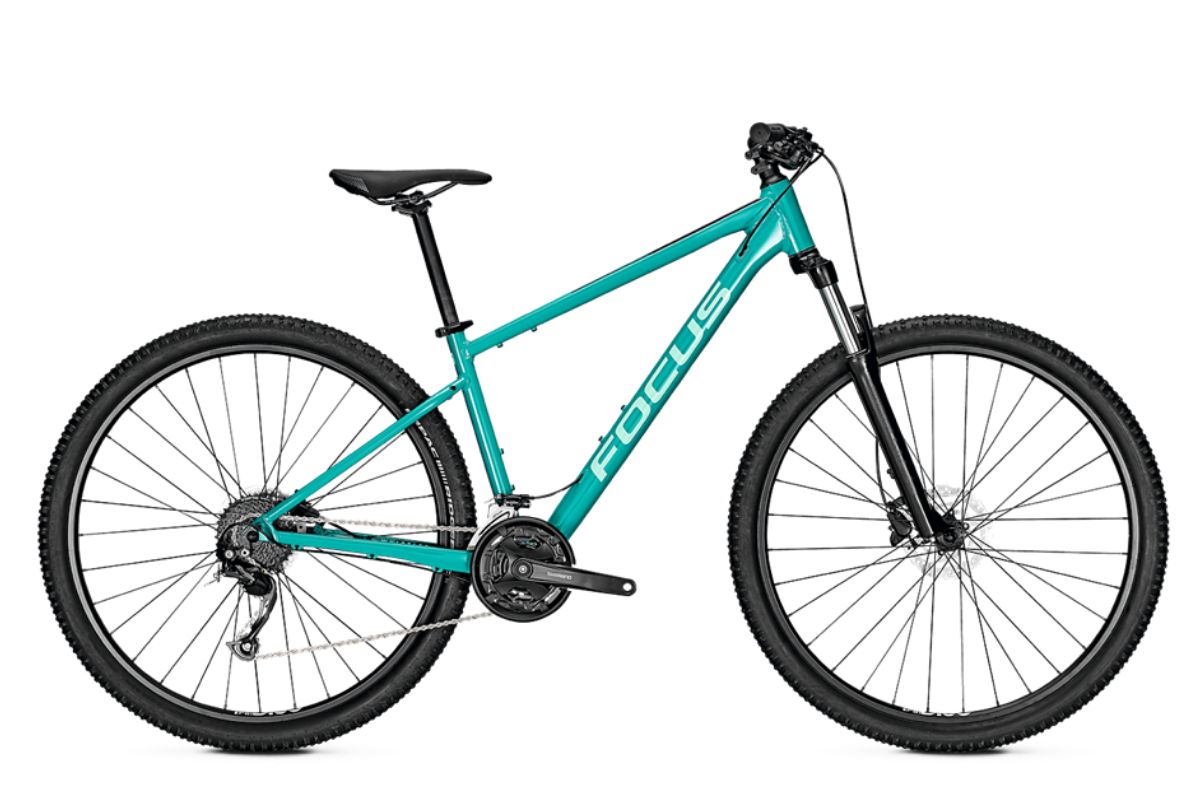

Focus Whistler 3.6 [XL only]

SHIMANO ALTUS 3X9 SHIFTING AND SR SUNTOUR XCT-ATB SUSPENSION FORK WITH MOUNTING POINTS FOR MUDGUARDS

VISUAL HIGHLIGHT AND BETTER PROTECTION: ALL CABLES ARE INTEGRATED INTO THE FRAME

OPTION TO MOUNT PANNIER RACK AND MUDGUARD AS WELL AS FURTHER MOUNTING POINTS BELOW THE TOP TUBE TO ATTACH E.G. A FOLDING LOCK

• Brake
  • 180 mm
  • 160 mm
• Frame size
  • S
  • 38
• Drive train
  • chain
• Max total weight
  • 110
• Frame
  • 6061 aluminium, 3D forging, disc, internal cable routing, post mount 160 mm
• Fork
  • SR Suntour NVX30, QR, 5x100 mm
• Handlebar
  • Riser, Aluminium, 720mm
• Saddle
  • VELO VL3378
• Seat post
  • Alloy, 27,2 mm
• Stem
  • Aluminium, 31,8 mm, 6°
• Brakes
  • Alhonga HT474,Alhonga HT474
• Crank set
  • Shimano MT101
• Switch lever
  • Shimano SL-M2010, 9-speed
• Sprocket
  • Shimano HG200, 9-speed
• Transmission
  • front: 40/30/22 rear: 11-34
• Headset
  • VP Components 1-1/8", ZS44/28,6-ZS44/30 Ahead
• Tyres
  • Schwalbe Smart Sam 29 x 2.25" / 27.5 x 2.25" / Kenda Booster 29 x 2.25" / 27.5 x 2.25"
• Tyres, rear
  • Schwalbe Smart Sam 29 x 2.25" / 27.5 x 2.25" / Kenda Booster 29 x 2.25" / 27.5 x 2.25"
• Wheel rims
  • Schürmann YAK 21,Schürmann YAK 21
• specs.ProductRearBrakeDescription
  • Alhonga HT474
• Disc brake rotor, front
  • 180 mm
• Disc brake rotor, rear
  • 160 mm
• Colour
  • Slategrey
• Travel
  • 80mm (XS-S) / 100mm (M-XL)
• Hub
  • KT TC7F, QR, 5x100 mm
  • KT-TC7R, QR, 5x135 mm
• Grip
  • Velo VLG108
• Rear derailleur
  • Shimano Altus M2000, 9-speed
• Tire
  • Schwalbe Smart Sam 29 x 2.25" / 27.5 x 2.25" / Kenda Booster 29 x 2.25" / 27.5 x 2.25"
• Shift/brake lever
  • Shimano SL-M2010, 9-speed
• Spoke
  • Zink, black
• Chain
  • KMC X9
