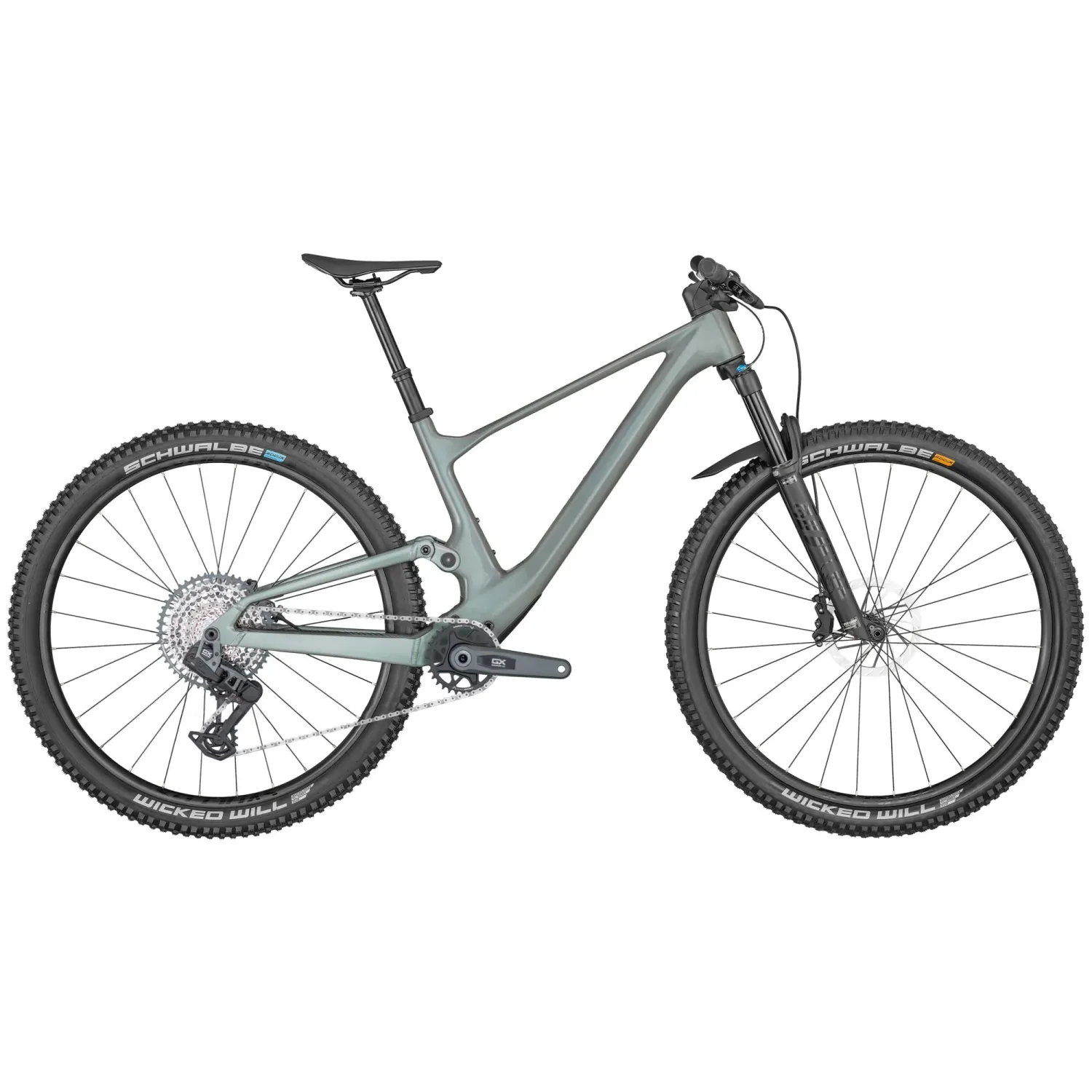

Scott Spark 920 TR

• Spark Carbon HMF-Alloy Frame
• FOX 34 Float Perf. 130mm Fork
• FOX Nude 5T EVOL, TwinLoc, 120mm
• SRAM GX Eagle AXS Transmission
• SRAM DB8 4 Piston Disc Brakes
• Syncros Silverton 2.5 TR Wheels
• Schwalbe Wicked Will Tires
• Syncros Dropper Post and Parts

Spark Carbon HMF Mainframe with Alloy 6011 SwingarmIntegrated Suspension TechnologyFlex Pivot / Adjustable head angleSyncros Cable Integration SystemBB92 / UDH Interface / 12x148mm with 55mm Chainline

ForkFOX 34 Float Performance Air Grip3-Modes / Kabolt 15x110mm axle / tapered steerer44mm offset / Reb. Adj. / Lockout / 130mm travel

Rear ShockFOX NUDE 5T EVOL TrunnionSCOTT custom w. travel / geo adj.3 modes: Lockout-Traction Control-DescendCustom large Air volume / DPS / Reb. Adj.Travel 120-80-Lockout / T165X45mm

Remote SystemSCOTT TwinLoc 2 TechnologySuspension & Dropper Remote3 Suspension modes

Rear DerailleurSRAM GX Eagle AXS Transmission 12 SpeedWireless Electronic Shift System

ShiftersSRAM GX Eagle AXS Rocker Controller

CranksetSRAM GX Eagle TransmissionDUB / 55mm CL / 32T

BB-SetSRAM DUB PF 92 MTB Wide / shell 41x92mm

ChainSRAM CN GX Eagle Transmission

CassetteSRAM GX Eagle XS 1275 Transmission 10-52

BrakesSRAM DB8 4 Piston Disc

RotorSRAM HS2 Rotos / 6 Bolt / F&R 180mm

HandlebarSyncros Fraser 1.5 DC Alloy 7075 D.B.mini Rise / back sweep 8° / 760mmSyncros Performance XC lock-on grips

H'stemSyncros DC 1.5Syncros Cable Integration System0° rise / 7050 Alloy / 31.8mm / 1 1/8"

SeatpostSyncros Duncan Dropper Post 1.531.6mm / S size 125mm / M size 140mm / L size 150mm / XL size 150mm

SeatSyncros Tofino 2.0 RegularCRMO rails

HeadsetSyncros - Acros Angle adjust & Cable Routing HS System+-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB

WheelsetSyncros Silverton 2.5-30 6 BoltF: 15x110mmR: 12x148mm30mm Tubeless ready rim 28H / XD DriverSyncros Axle w/Removable Leverwith 6mm AllenT30 and T25 Tools

Front TireSchwalbe Wicked Will 29x2.4" EVOSuper Race / TLE / 67EPI / Addix Speed Soft

Rear TireSchwalbe Wicked Will 29x2.4" EVOSuper Race / TLE / 67EPI / Addix Speed Grip

ExtrasSyncros Fork Fender

Approx weight in KG12.9 (Tubeless setup)

Approx weight in LBS28.44 (Tubeless setup)

Max. System Weight128kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
